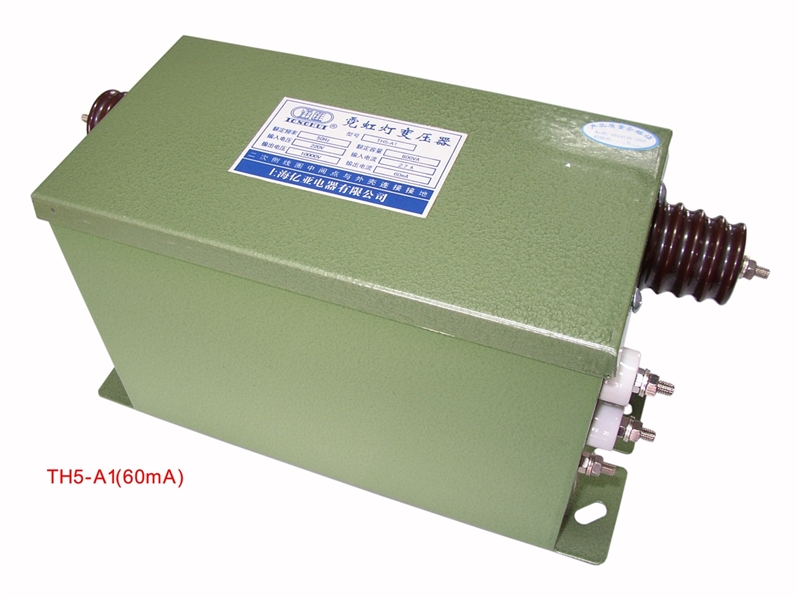

- 產品名稱： TH5-A1 series
- 產品型號：
- 商品簡介： Asphalt resin filled and vacuum potted. Patented magnetic core at low consumption. Heavey duty metal box and coated power. User Friendly-Adapts to most grounding situations. Design patent NO.:ZL02343650.6. Features: - Traditional coil and core transformer - Compact size and light weight - Resin filled and vacuum potted - High reliability and long life Environmental Specifications : - Cooling: Convection - Relative humidity: 5% to 95%
220V 50Hz 30mA Series Transformer(230V,240V,60Hz is optional)
|
Vendor's Model Name |
Input Voltage(V) |
Input Current(A) |
Frequency(Hz) |
Output Voltage(KV) |
Output Current(mA) |
Watts (VA) |
|
TH5-A1(220) |
220 |
2.1 |
50 |
15 |
30 |
450 |
Remark:Critical specification should be confirmed before placement of order,for further information,please contact with us.
