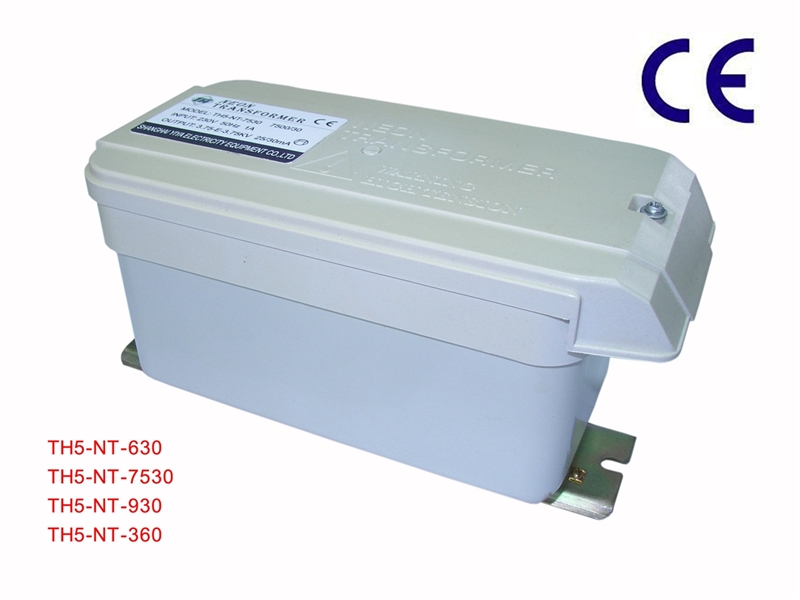

- 產(chǎn)品名稱： TH5 series(small model)
- 產(chǎn)品型號：
- 商品簡介： Impregnation under high vacuum eith epoxy resin with filling compounds Patented magnetic core at low consuption Metal box and coated with polyester powders High performance cycoloy PC/ABS alloy material Suitable for neon and also Argon tubing Specially suitable for cold cathode lighting or neon tube Dia.12mm Features: - Traditional coil and core transformer. - Compact size and light weight. - Epoxy resin filled and vacuum potted. - High reliability and long life. Environmental Specifications : - Cooling: Convection - Installation: Indoor or Outdoor
230V 50Hz 30mA Series CE Certification Transformer(240V,60Hz is optional)
|
Vendor's Model Name |
Input Voltage(V) |
Input Current(A) |
Frequency(Hz) |
Output Voltage(KV) |
Output Current(mA) |
Watts (VA) |
|
TH5-NT-0930(230) |
230 |
1.2 |
50 |
9 |
30 |
270 |
|
TH5-NT-7530(230) |
230 |
1 |
50 |
7.5 |
30 |
225 |
|
TH5-NT-0630(230) |
230 |
0.8 |
50 |
6 |
30 |
180 |
|
TH5-NT-0530(230) |
230 |
0.7 |
50 |
5 |
30 |
150 |
|
TH5-NT-0545(230) |
230 |
1 |
50 |
5 |
45 |
225 |
